63 31 003 Removing and installing/replacing complete interior roof light (rear)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Carefully lever out interior roof light (1) with special tool 00 9 325 in direction of arrow.

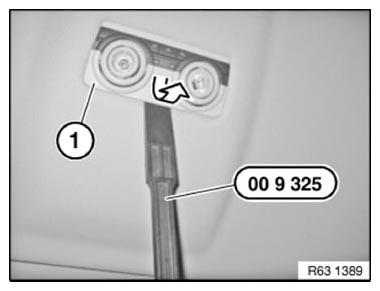

Fig 1: Removing Interior Roof Light

G09929176

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove interior roof light (2).

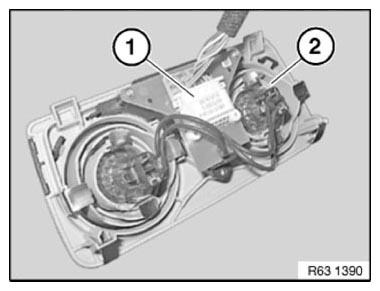

Fig 2: Identifying Interior Roof Light And Plug Connection

G09929177

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove bulbs.
Note BULB TYPE

Unlock retaining lugs (1) and remove bulb holder (2) in direction of arrow from interior roof light (3).

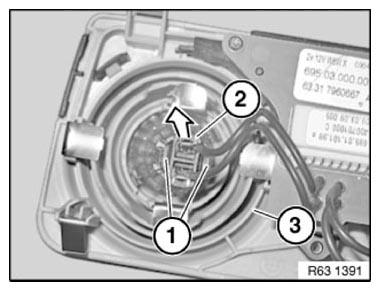

Fig 3: Removing Bulb Holder

G09929178

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb (1) out of bulb holder (2) in direction of arrow.

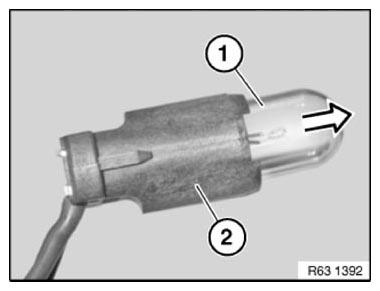

Fig 4: Pulling Bulb

G09929179

Courtesy of BMW OF NORTH AMERICA, INC.

Special tools required:

00 9 317

Carefully lever out interior roof light (1) in direction of arrow with special tool 00 9 317 .

Fig 1: Removing Interior Roof Light Using Special Tool (00 9 317)

G06886124

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove roof light (2).

Fig 2: Identifying Plug Connection And Roof Light

G06886125

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs
