51 34 191 Replacing left or right fixed door window glass in rear window frame
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove COVER FROM WINDOW FRAME
- Remove inner WINDOW CAVITY COVER STRIP
- Remove SIDE WINDOW

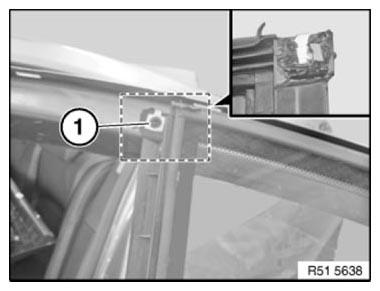

Release screw (1).
Tightening torque 51 35 13AZ .
Installation note:
If necessary, apply new butyl in area of fastener (1) between fixed door window glass and window frame.

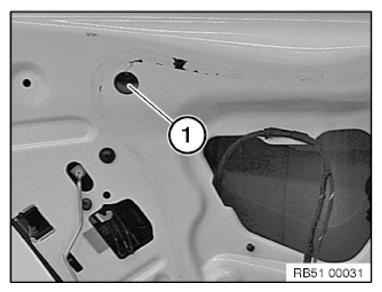

Release screw (1).
Tightening torque: 51 35 3AZ .

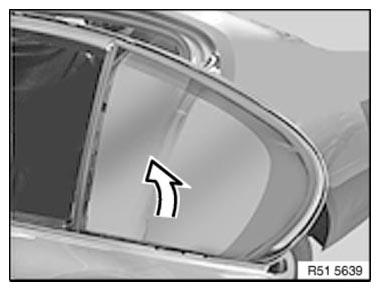

Move window frame forward at the bottom and clear of frame trim.
Tilt window frame slightly out and carefully lift it clear.
Installation note:
To facilitate installation, wet rubber parts of window frame with water. Work window frame correctly behind the retaining clips of the frame trim.
