51 34 171 Replacing rear left or right door window

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open door window glass fully
Switch off ignition
Remove SOUND INSULATION
Remove OUTER WINDOW CAVITY COVER STRIP
Remove TRIM ON WINDOW FRAME at rear

IMPORTANT: Risk of injury by trapping! Switch off ignition.

Unclip door window glass (1) from power window regulator (2).

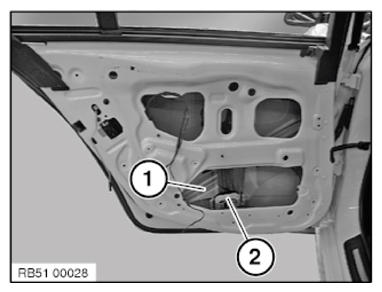

Fig 1: Identifying Door Window Glass And Power Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift out door window glass (1).

Fig 2: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
