51 34 160 Remove and install/replace cover on side window frame (rear door) at inside left or right
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Open side window
- Remove rear DOOR TRIM PANEL
NOTE:

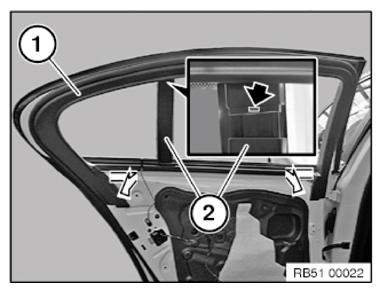

Cover on window frame (1+2) is two-piece.
Not for roller sunblind optional equipment:
- Unclip cover on window frame (2) in direction of arrow and remove.
Installation note:
- Clip cover on window frame (2) at top neatly to cover on window frame (1).
Pull out cover on window frame (1) downwards in direction of arrow first, then take it off completely.
Installation note:
Feed cover on window frame (2) neatly into the gap of the rubber window seal (1).
