61 35 975 Removing and installing/replacing bumper aerial for comfort access system

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Graphic shows the F10 by way of example, deviations in detail are possible in other models.

Depending on vehicle type and version:

Release screws (1).

Release expanding rivets (2).

Remove bottom cover (3).

Installation note:

Screws (1) and expanding rivets (2) must not be damaged or missing.

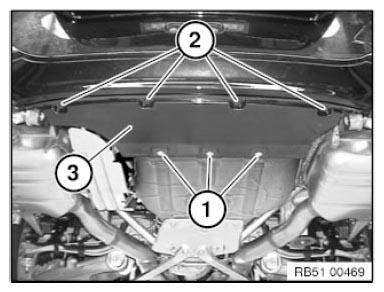

Fig 1: Identifying Bottom Cover, Expanding Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Bumper aerial is located behind bumper panel on guide at rear center.

If necessary, extend trailer tow hitch.

Reach between bumper panel and end plate.

Disconnect plug connection (1).

Unlock and remove bumper aerial (2) from bracket (3).

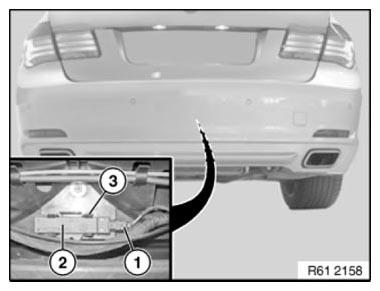

Fig 2: Removing Bumper Aerial From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure bumper aerial (2) is seated correctly in bracket (3).
