66 32 020 Removing and installing/replacing sensor for lane change warning
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER PANEL .

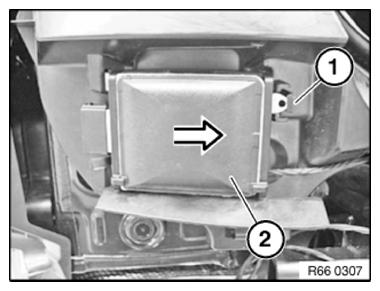

Unlock catch (1).
Remove sensor (2) from holder.
IMPORTANT:
If, in the event of side damage to the vehicle, it is not necessary to replace the tail panel, observe the following points:
- Fit middle bumper panel guide on undamaged side
- Use middle bumper panel guide as a gauge in order to check or correct the position of the remaining connecting points.
- Middle bumper panel guide must be able to be fitted without tension.
Replacement:
- Carry out VEHICLE PROGRAMMING AND ENCODING .
Replacement/after body repair:
-> Execute diagnosis job
- Initial operation
- Lane change warning sensor system
