33 31 011 Replacing rear axle support (M5)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
Load the luggage compartment with a minimum of 100 kg before lowering/removing the rear axle support. This prevents the vehicle from tilting or sliding off the vehicle hoist!
When supporting components, make sure that:
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
Load the luggage compartment with a minimum of 100 kg before lowering/removing the rear axle support. This prevents the vehicle from tilting or sliding off the vehicle hoist!
When supporting components, make sure that:
- the vehicle can no longer be raised or lowered
- the vehicle does not lift off the locating plates on the vehicle hoist.
IMPORTANT:
Before lowering/removing rear axle support:
Observe SAFETY INFORMATION for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Observe SAFETY INFORMATION for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Necessary preliminary tasks:
- Remove REAR AXLE FINAL DRIVE .
- Remove REAR AXLE SUPPORT .
Remove ANTI-ROLL BAR
Remove RIDE HEIGHT SENSOR .
Remove both SWINGING ARMS ON REAR AXLE SUPPORT .
Remove both WISHBONES ON REAR AXLE SUPPORT .
Remove both TOE ARMS ON REAR AXLE SUPPORT .

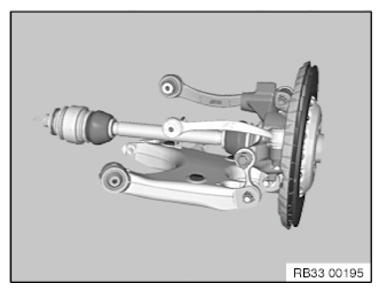

Remove both wheel carriers with output shaft, swinging arm and handlebars.

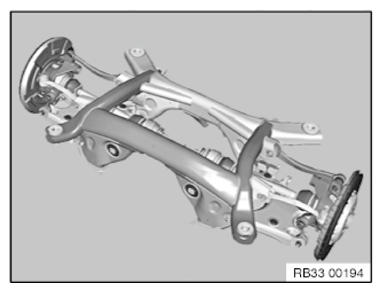

Take the rear axle support off the special tool with a helper and set onto a suitable support.
Installation note:

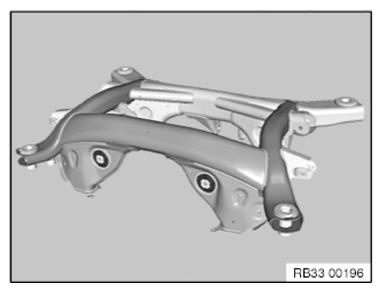

Use previous rear axle support as a template for modifying or replacing small parts.
After installation:
- Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
