33 55 000 Removing and installing/replacing rear anti-roll bar (M5)

Necessary preliminary tasks:

• Remove ONE REAR WHEEL .
• Remove REINFORCEMENT PLATE .
• Release both ANTI-ROLL BAR LINKS AT ANTI-ROLL BAR

Support exhaust system at a suitable point with workshop jack.

Unscrew nuts (1).

Tightening torque 18 20 4AZ .

(Graphic shows left side, right side is identical.)

Fig 1: Identifying Left/Right Rear Silencer Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (2) on vacuum unit.

Slacken nut (1).

Tightening torque 18 20 5AZ .

Lower exhaust system.

Fig 2: Identifying Hose And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 33 55 1AZ .

Turn anti-roll bar (2) and remove sideways.

Installation note:

Replace screws.

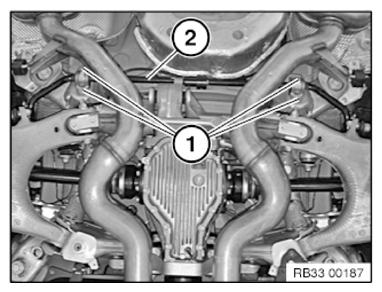

Fig 3: Identifying Anti-Roll Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure that the two retaining tabs (1) of the anti-roll bar are correctly aligned.

The shorter tab of the retaining tab (1) must face the direction of travel.

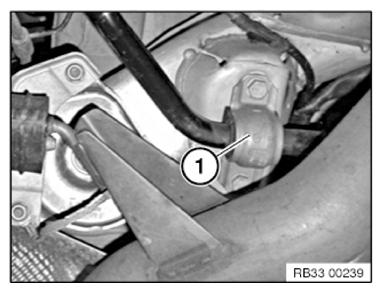

Fig 4: Identifying Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Check both rubber mounts for damage.
  • In the event of damage, the anti-roll bar must be renewed.
• Pay attention to correct installation position when installing anti-roll bar.
  • The bend of the anti-roll bar must point to the top in area of anti-roll bar to anti-roll bar link.
