33 10 030 Removing and installing/replacing oil sump on rear axle differential (220M)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Only liquid sealing compound may be used!
To prevent the final drive oil from foaming over, make sure that no remnants of the liquid sealing compound are pressed into the rear axle final drive housing.
After completing repair work, CHECK/TOP UP TRANSMISSION OIL LEVEL .
Use only the approved transmission oil. Refer to OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the rear axle differential.
To prevent the final drive oil from foaming over, make sure that no remnants of the liquid sealing compound are pressed into the rear axle final drive housing.
After completing repair work, CHECK/TOP UP TRANSMISSION OIL LEVEL .
Use only the approved transmission oil. Refer to OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the rear axle differential.
Necessary preliminary tasks:
- Drain FINAL DRIVE OIL .
- Remove REAR AXLE FINAL DRIVE .
Release screws (1).
Tightening torque 33 17 5AZ .
Remove front adapter (2).
Installation note:
Replace screws (1).

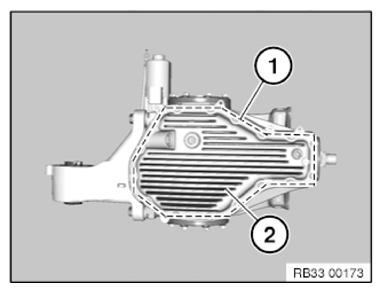

Release screws along the dotted line (1).
Tightening torque 33 11 9AZ .
Remove oil sump (2).
Clean sealing surface (1) on oil sump and rear axle differential.
If necessary, remove remnants of liquid sealing compound with scraper.
Installation note:
Installation note:
Replacing oil sump:

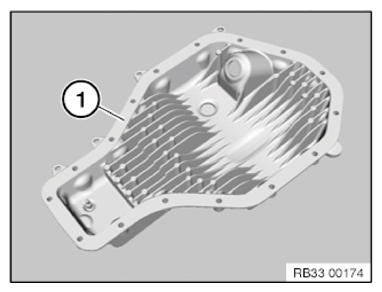

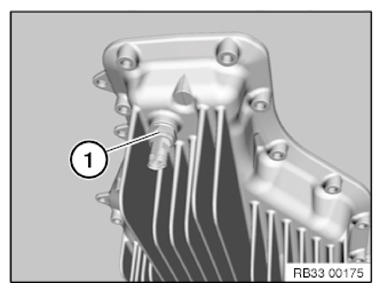

Release temperature sensor (1) and screw in into new oil sump.
Tightening torque 33 11 6AZ .
