00 11... Checking/topping up oil level in rear axle final drive
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning if exhaust system is touched!
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Use only the approved transmission oil. Refer to OPERATING FLUIDS
.
Failure to comply with this instruction will result in serious damage to the rear axle differential.
Failure to comply with this instruction will result in serious damage to the rear axle differential.

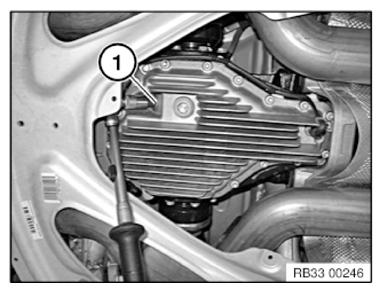

Open screw plug (1).
- Open and tighten screw plug (1) by using:
- Torque wrench 3/8"
- Reduction 1/2" to 3/8"
- 1/2" spanner socket AF 14
Tightening torque 33 11 2AZ .
Check oil level.
Top up final drive oil as required until it emerges from oil filler opening.
Installation note:
Renew screw plug (1).
