31 21 090 Replacing left/right swivel bearing (M5)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove BRAKE DISC .
Release brake hose from holders on swivel bearing and tie up brake caliper.

Do not allow brake caliper to hang from brake hose!

Release screw (1).

Tightening torque 31 51 3AZ .

Pull out pulse sensor (2) from the swivel bearing.

Fig 1: Identifying Pulse Sensor And Screw

G06890090

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage line (1) along marked lines from holders.

Fig 2: Identifying Brake Pad Sensor Line

G06890026

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure swivel bearing against falling out.

Remove upper wishbone from swivel bearing . See 31 12 002 REMOVING AND INSTALLING/REPLACING TOP LEFT WISHBONE or 31 12 003 REMOVING AND INSTALLING/REPLACING TOP RIGHT WISHBONE .

Remove TRAILING LINK FROM SWIVEL BEARING

Remove TRACK ROD END FROM SWIVEL BEARING .

Remove LOWER WISHBONE FROM SWIVEL BEARING .

Remove swivel bearing.

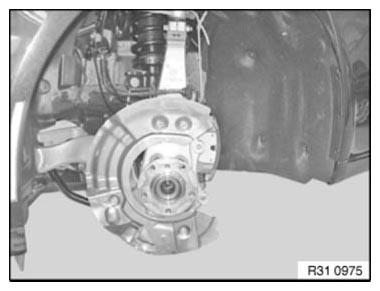

Fig 3: Securing Swivel Bearing Against Falling Out

G06889584

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Modify both cable clips/pulse sensors (1) on swivel bearing.

Install new stud bolts (2).

Tightening torque 31 21 3AZ .

Modify BRAKE GUARD PLATE (3).

Modify WHEEL BEARING (4).

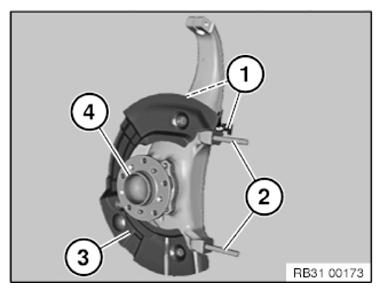

Fig 4: Identifying Brake Guard Plate, Wheel Bearing And Stud Bolts

G09922626

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
