34 11 220 Removing And Installing/Replacing Both Front Brake Discs
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 34 1 280
Necessary preliminary tasks:
- Remove FRONT WHEELS .
- Remove and clean BRAKE PADS .
NOTE:
After completing repair work, read and comply with notes on BREAKING IN NEW BRAKE DISCS/BRAKE PADS .
Check minimum brake disc thickness:
- Position special tool 34 1 280 at three measuring points in area (1) and measure.
- Compare measuring result and lowest value with SETPOINT VALUE .
NOTE:
If the brake discs are replaced, you must also fit new brake pads.
Brake discs may only be replaced in pairs (on each axle).
Brake discs may only be replaced in pairs (on each axle).
IMPORTANT:
New brake pads may only be fitted if the brake disk thickness is greater than the MINIMUM BRAKE DISC THICKNESS
(MIN TH).
IMPORTANT:
To release brake disc: Do not under any circumstances strike friction ring with a hammer or similar!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!

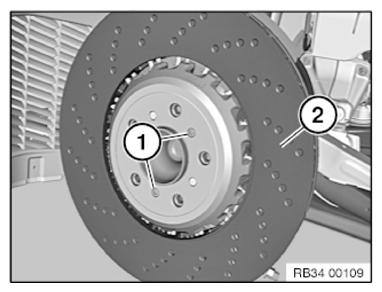

Release both screws (1) and remove brake disc (2).
Installation note:
Replace screws.
Tightening torque: 34 11 1AZ .
Special tools required:
- 34 1 280
Necessary preliminary tasks:
- Remove FRONT WHEELS .
- Remove and clean BRAKE PADS .
NOTE:
After completing repair work, read and comply with notes on BREAKING IN NEW BRAKE DISCS/BRAKE PADS .
Check minimum brake disc thickness:
- Position special tool 34 1 280 at three measuring points in area (1) and measure.
- Compare measuring result and lowest value with SETPOINT VALUE .
NOTE:
If the brake discs are replaced, you must also fit new brake pads.
Brake discs may only be replaced in pairs (on each axle).
Brake discs may only be replaced in pairs (on each axle).
IMPORTANT:
New brake pads may only be fitted if the brake disk thickness is greater than the MINIMUM BRAKE DISC THICKNESS
(MIN TH).
Release screws (1). Remove brake-caliper support.
Installation note:
Tightening torque: 34 11 2AZ .
IMPORTANT:
To release brake disc: Do not under any circumstances strike friction ring with a hammer or similar!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!
Release screw (1) and remove brake disc (2).
Installation note:
Replace screw.
Tightening torque: 34 11 1AZ .
