31 21 180 Replacing bearings (wheel hub) for front wheel
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
There are/will be wheel bearings installed with a thread pitch of 1.5 mm or 1.25 mm (screw connection of wheel bearing on swivel bearing):
- Make sure the allocation of the wheel bearing/screws is correct!
If applicable, check the thread pitch with a thread gauge.
- Make sure that the torque allocation of the wheel bearing on the swivel bearing is correct!
Necessary preliminary work:
- Remove brake disc . See 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS or 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS .
NOTE:
- Check brake pads and renew . See 34 11 000 REMOVING AND INSTALLING/RENEWING BRAKE PADS ON BOTH FRONT DISC BRAKES or 34 11 000 REMOVING AND INSTALLING/REPLACING BRAKE PADS ON BOTH FRONT DISC BRAKES (M5) if necessary!

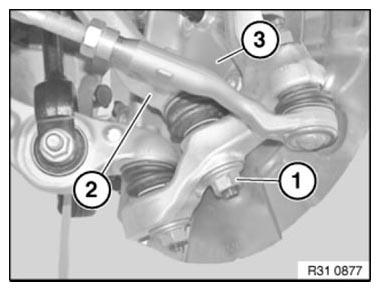

Slacken nut (1).
Tightening torque 31 12 2AZ .
Remove trailing link (2) from swivel bearing (3).

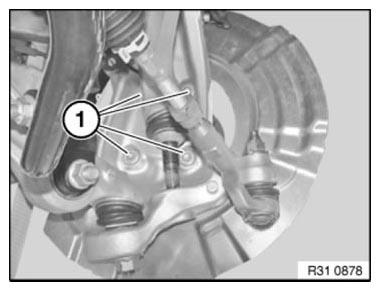

Release screws (1) and remove mount.
Tightening torque 31 21 1AZ .
Installation note:
Replace screws.
Keep threaded holes (1) clean and free from grease.
Keep contact surface (2) of wheel bearing and swivel bearing clean and free from grease.
