84 50 060 Removing and refitting/replacing Bluetooth aerial (03/2010 on)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR LEFT DOOR SILL COVER STRIP .

Lay floor trim (1) to one side.

Fig 1: Removing Floor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

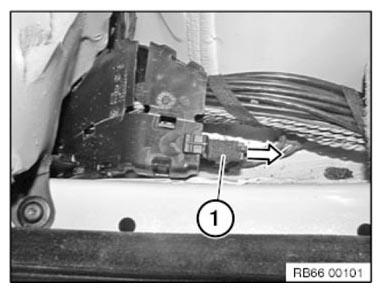

Unclip Bluetooth aerial (1) in direction of arrow.

Fig 2: Unclipping Bluetooth Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Bluetooth aerial lead is connected to Telematic Control Unit/Combox.

F01, F02, F03, F04, F10, F11, F18

Telematic Control Unit/Combox is located underneath luggage compartment left wheel arch panel

F07

Telematic Control Unit/Combox is located underneath SPARE WHEEL WELL FRONT TRIM PANEL .

Expose Bluetooth aerial lead to Telematic Control Unit/Combox and unplug connector.
