51 47 030 Removing and installing/replacing rear left or right entrance cover strip (inside)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

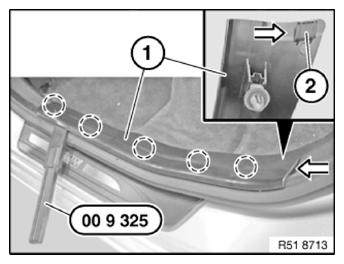

Carefully pry off entrance cover trim from front to back (1) with special tool 00 9 325 and remove by pulling forward.

Installation:

Correctly hook entrance cover strip (1) into wheel arch-luggage compartment trim panel with retaining tab (2).

Fig 1: Removing Hook Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty clips (1).

Replacement

Modify clips (1).

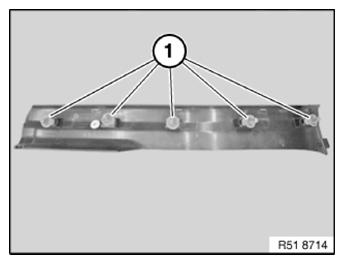

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
