51 47... Removing and installing/replacing front panel of spare wheel well

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FRONT FLOOR PANEL

Remove expanding rivets (1) from front panel of spare wheel well (2).

Installation:

Replace faulty expanding rivets (1).

Lift out front panel of spare wheel well (2).

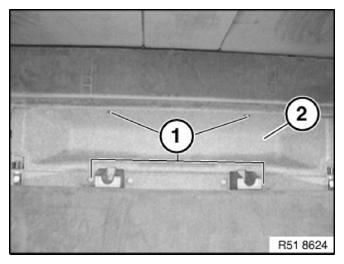

Fig 1: Identifying Expanding Rivets And Front Panel Of Spare Wheel

Courtesy of BMW OF NORTH AMERICA, INC.
