66 53 020 Removing and installing (replacing) reversing camera

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release screws (1).

Remove cover cap (2).

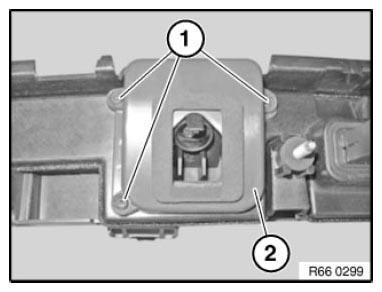

Fig 1: Identifying Screws And Cover Cap
G08485366Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear view camera (1) in direction of arrow from retaining fixture (2).

Replacement:

Remove protective film from lens of reversing camera (1).

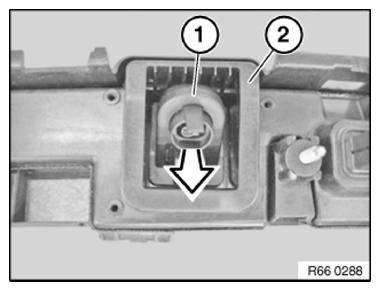

Fig 2: Removing Rear View Camera
G09881880Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Seal (1) on rear view camera (2) must not be damaged.

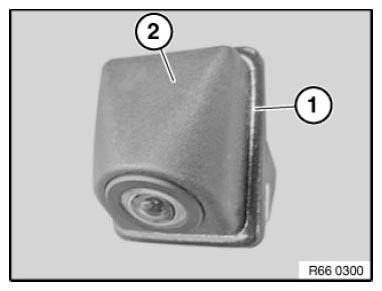

Fig 3: Identifying Seal On Rear View Camera
G08485368Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Replacement

Carry out VEHICLE PROGRAMMING/ENCODING
