66 31 006 Removing and installing (replacing) ACC sensor
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove the ornamental GRILLE FOR THE BUMPER TRIM (CENTER) .

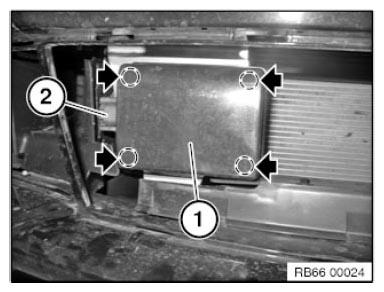

Undo screws in marked area on the rear side of the ACC sensor (1).
Tightening torque 66 31 1AZ .
Remove ACC sensor from holder (1).
IMPORTANT:

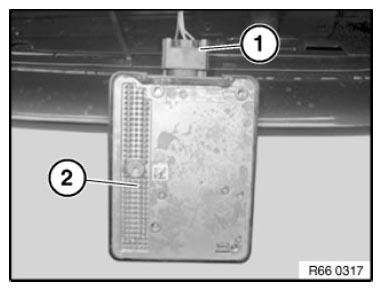

Secure ACC sensor (2) against falling out.
Unfasten plug connection (1) and disconnect.
Remove ACC sensor (2).
After installation
- If applicable, ADJUST THE ACC SENSOR .
Replacement
- Carry out VEHICLE PROGRAMMING AND ENCODING .
- ADJUSTING ACC SENSOR .
Necessary preliminary tasks:
- Remove the ornamental GRILLE FOR THE BUMPER PANEL (CENTER) .

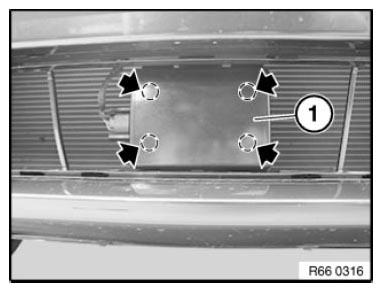

Loosen screws in marked area on the rear side of the ACC sensor (1).
Tightening torque 66 31 1AZ .
Unfasten plug connection (2) and disconnect.
Remove ACC sensor (1).
After installation
- If applicable, ADJUST THE ACC SENSOR
Replacement
