66 31 010 Adjusting ACC sensor (FRR sensor)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:
This service information applies to the entire F series with the new ACC sensor (FRR - Full Range Radar).
Special tool required:
Active Cruise Control ACC adjusting device, complete.
Order number: 81 10 0 021 292

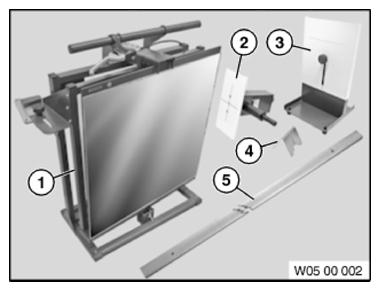

Consisting of:
- Mirror, complete
- Wheel laser
- Slotted diaphragm
- Control holder (for initial installation of rail)
- Rail
- Setup and Operating Instructions (not shown)
NOTE:
A mounting which is not included in the delivery specification is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (2 338 466
).
NOTE:
- Follow notes for ACC ADJUSTING DEVICE .
NOTE:
To set the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device.
Select ACC calibration in diagnosis.
Handle ACC adjusting device in accordance with mounting and Owner's Handbook provided with device.
Select ACC calibration in diagnosis.
- Service function
- Chassis and suspension
- ACC cruise control
- Start-up of ACC sensor
Handle ACC adjusting device in accordance with mounting and Owner's Handbook provided with device.
NOTE:
Further information on the ACC adjusting device can be found in the BMW Workshop Equipment and Planning Documentation.
NOTE:
The following step must be taken if there is an "Incorrectly adjusted sensor" fault entry or there is a suspicion of frontal damage.
All except F34.
IMPORTANT:
The vehicle must be parked on a flat, horizontal
surface!
NOTE:
For purposes of clarity, graphic shows holder (1) removed.

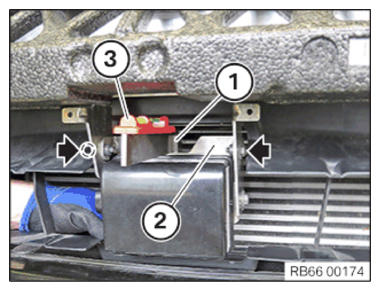

Hold square (2) against holder (1) as shown.
Limit stop leg length: approx. 105 mm
Check vertical orientation in direction of travel with bubble level (3).
Replace holder if necessary.
IMPORTANT:
After replacing the holder, check the ACC sensor position again using the square (2) and bubble level (3).
If the ACC sensor position is still not right, CHECK THE SUPPORT FOR THE BUMPER PANEL AT THE BOTTOM FRONT FOR DAMAGE AND REPLACE IF NECESSARY (except F34).
A damaged/bent holder (1) indicates mechanical misuse of the vehicle and cannot be handled as a warranty case.
If the ACC sensor position is still not right, CHECK THE SUPPORT FOR THE BUMPER PANEL AT THE BOTTOM FRONT FOR DAMAGE AND REPLACE IF NECESSARY (except F34).
A damaged/bent holder (1) indicates mechanical misuse of the vehicle and cannot be handled as a warranty case.
Only F34.
IMPORTANT:
The vehicle must be parked on a flat, horizontal
surface!
Hold square (1) against holder (2) as shown.
Check vertical orientation in direction of travel with bubble level (3).
Adjust as appropriate by screws on side of holder (2).
If no correct setting can be attained, replace the complete holder (2).
IMPORTANT:
After replacing the holder, check the ACC sensor position again using the square (1) and bubble level (3).
If the ACC sensor position is still not right, check the support for the bumper panel for damage and replace if necessary.
A damaged/bent holder (1) indicates mechanical misuse of the vehicle and cannot be handled as a warranty case.
If the ACC sensor position is still not right, check the support for the bumper panel for damage and replace if necessary.
A damaged/bent holder (1) indicates mechanical misuse of the vehicle and cannot be handled as a warranty case.
