51 11 180 Removing and installing/replacing trim grille for bumper trim (center)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BASEPLATE FOR NUMBER/LICENSE PLATE
Remove TRIM GRILLE FOR BUMPER TRIM left and right

Unclip retaining lugs (2) and remove trim grille (1) by withdrawing forwards.

Installation note:

Retaining lugs (2) must not be damaged.

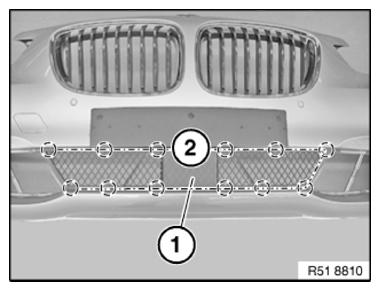

Fig 1: Identifying Retaining Lugs And Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.
