63 17 200 Removing and installing (replacing) left headlight for target illumination

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job item does not include adjustment of the headlight for target illumination!
ADJUSTMENT OF HEADLIGHT FOR TARGET ILLUMINATION must be carried out after removal and installation!

IMPORTANT: Follow notes for HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTS)

Necessary preliminary work:

Remove ORNAMENTAL GRILLE IN BUMPER PANEL

Release screws (1).

Tightening torque 63 12 7AZ .

Remove the headlight for targeted illumination (2) from the holder (3) in direction of arrow.

Unlock associated plug connection and disconnect.

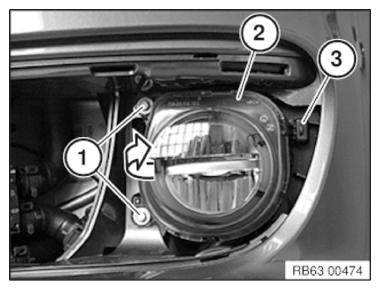

Fig 1: Identifying Headlight For Targeted Illumination, Holder, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
Adjust headlights for targeted illumination. Choose from the following methods:
- ADJUSTMENT WITH ADJUSTMENT AID

- ADJUSTMENT WITH MAHA LITE 3 ADJUSTMENT DEVICE

- ADJUSTMENT WITH NON-ELECTRONIC ADJUSTMENT DEVICE
