63 10 022 Adjusting dynamic light spot headlights (with headlight adjustment aid)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Danger of injury!
Laser radiation at headlight adjustment aid.
Do not look into the beam!

Functional description of dynamic light spot headlight: see LEFT-HAND TARGETED ILLUMINATION AND RIGHT-HAND TARGETED ILLUMINATION .

NOTE: Dynamic Light Spot headlight must be adjusted in the following cases:
  • After removing and installing/replacing the Dynamic Light Spot headlight
  • After removing and installing/replacing the front bumper panel
  • In the event of customer complaints about the lighting performance

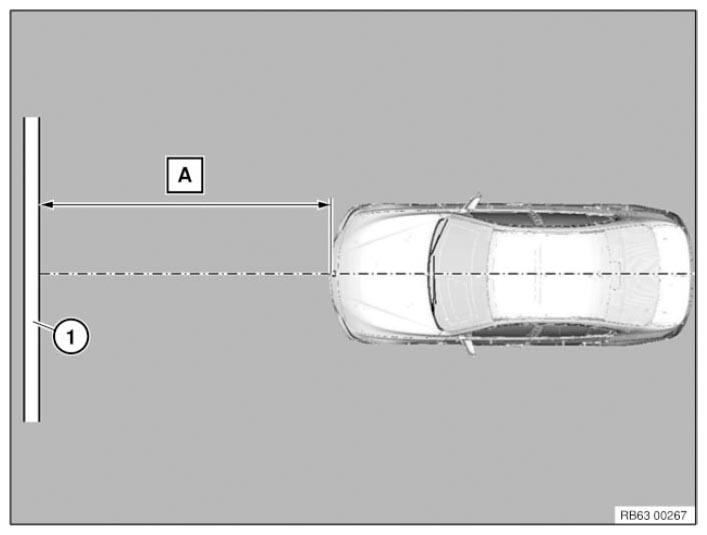

Fig 1: Adjusting Dynamic Light Spot Headlight With Headlight Adjustment Aid
G08505787Courtesy of BMW OF NORTH AMERICA, INC.

Requirements for adjusting the Dynamic Light Spot headlight with headlight adjustment aid:

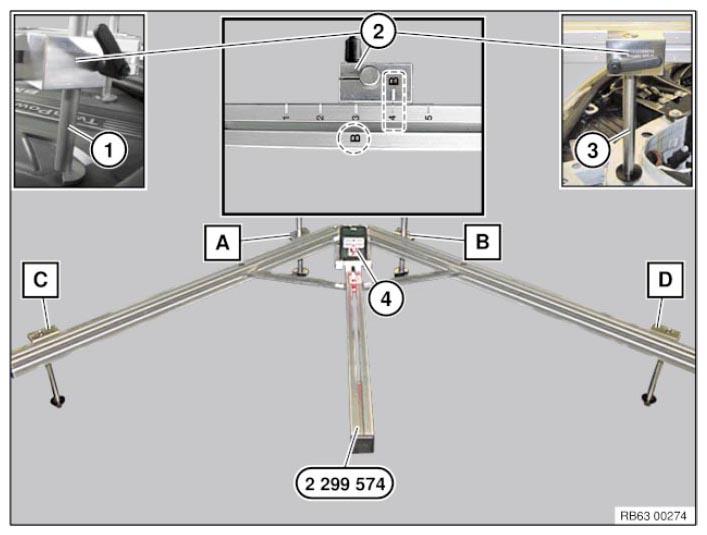

NOTE: Headlight adjustment aid (2 299 574) and mountings (2) are labelled (Fig 2):
  • Headlight adjustment aid (2 299 574) has label A, B, C, D with the associated numbers 1 to 5.
  • Mountings (2) are labelled A, B, C, D.

Position of mounting (2) on headlight adjustment aid (2 299 574) is specified:

Prepare the headlight adjustment aid (2 299 574) as shown:

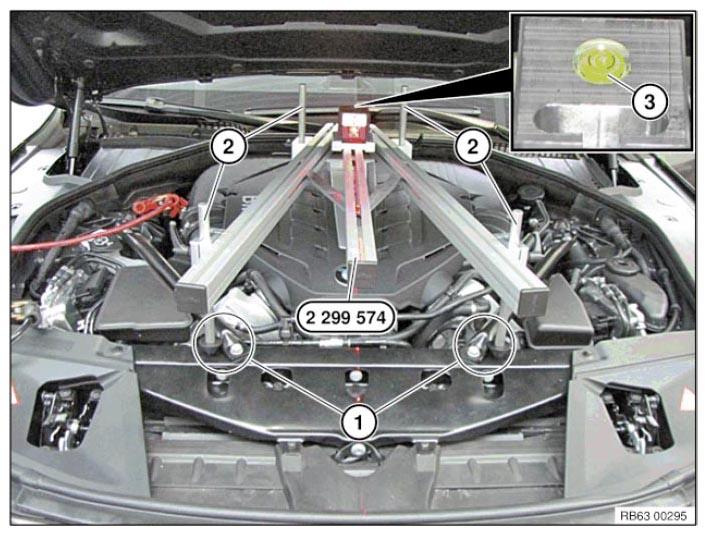

Position headlight adjustment aid (2 299 574) at marked openings (1) in engine compartment as shown.

NOTE: If during positioning the front rods (2) are located in the marked openings (1) at the struts, proceed as follows:
Connect 16 mm plug-in sockets to the front screws on the struts. Position front rods (2) in the fixtures of the plug-in sockets.

Align headlight adjustment aid (2 299 574) with longitudinally adjustable rods (2) using bubble level (3).

IMPORTANT: During the alignment of the adjustment aid of the headlight (2 299 574) by means of the bubble level (3) do not use the vehicle as a support!
NOTE: The height of the headlight adjustment aid (2 299 574) is not specified.
IMPORTANT: When the high-beam headlight is correctly set to prevent dazzle, the laser beam is at the height of the middle of the vehicle.

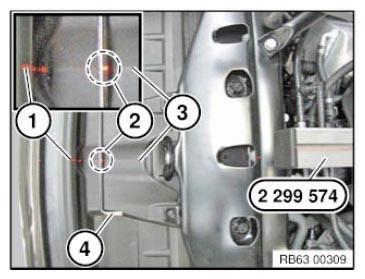

NOTE: Bead (3) is located in the center of vehicle. Bead (3) is for checking if the laser beam (1) is aligned on the center of vehicle.
Fig 4: Aligning Headlight Adjustment Aid
G08505790Courtesy of BMW OF NORTH AMERICA, INC.

Position a suitable object, such as the displayed tool (4), laterally to the bead (3). Laser beam (1) must strike tool (4) at the point of intersection with bead (2).

If not, correct the alignment of the headlight adjustment aid (2 299 574).

Switch the ignition on.

Perform test procedure via path:

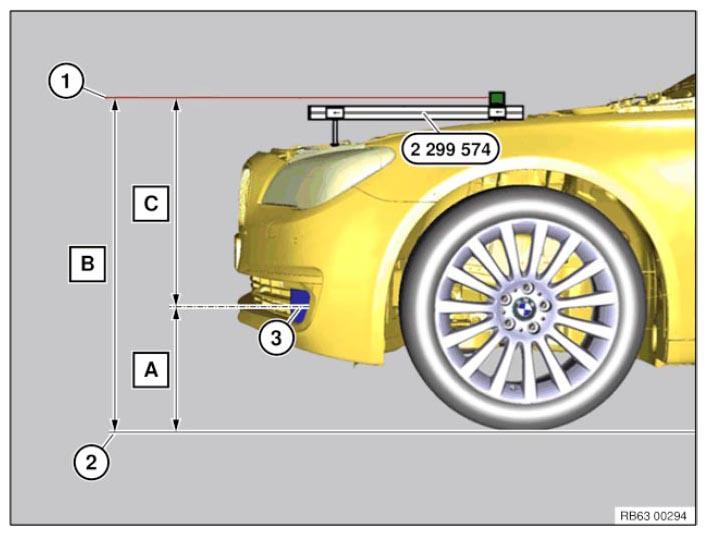

Determining distances:

Measure and note down distance (A) between middle of Dynamic Light Spot headlight (3) and floor (2).

Measure and note down distance (B) between laser beam (1) and floor (2) on the vehicle  .

Determine and note down distance (C):

Distance (C) = distance (B) - distance (A)

Fig 5: Measuring Distance Between Laser Beam And Floor
G08505791Courtesy of BMW OF NORTH AMERICA, INC.

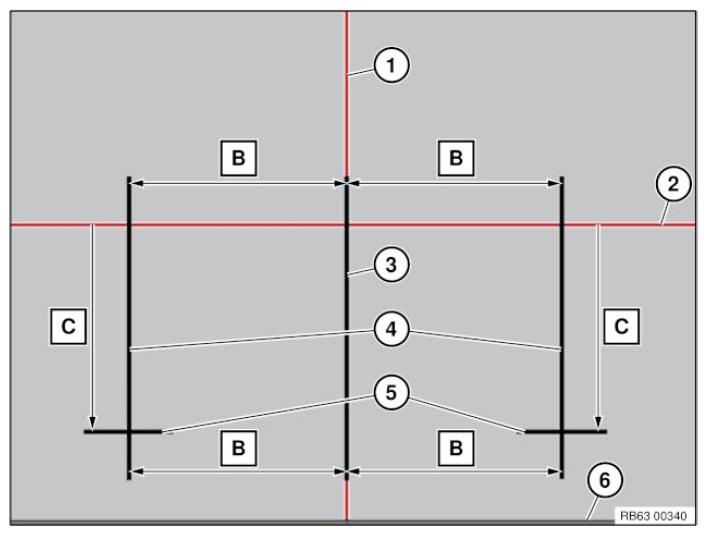

Attach adhesive tape markings (3, 4, 5 shown in black in the graphic) to the wall:

  1. Mark vertical laser beam (1) for example with adhesive tape (3) to wall (distance from floor (6) approx. 20 cm).
  2. Measure and mark distance (B) (see table below) at the upper and lower end of the adhesive tape (3) on both sides. Connect the marks with the adhesive tape (4).
  3. Measure distance (C) from the previous operation from the horizontal laser beam (2) on both sides downwards and mark with adhesive tape (5).
Vehicle Distance B
F01, F02, F03 75 cm
F07, F10, F11, F18 73, 5 cm
Fig 6: Measuring Distances
G08505792Courtesy of BMW OF NORTH AMERICA, INC.

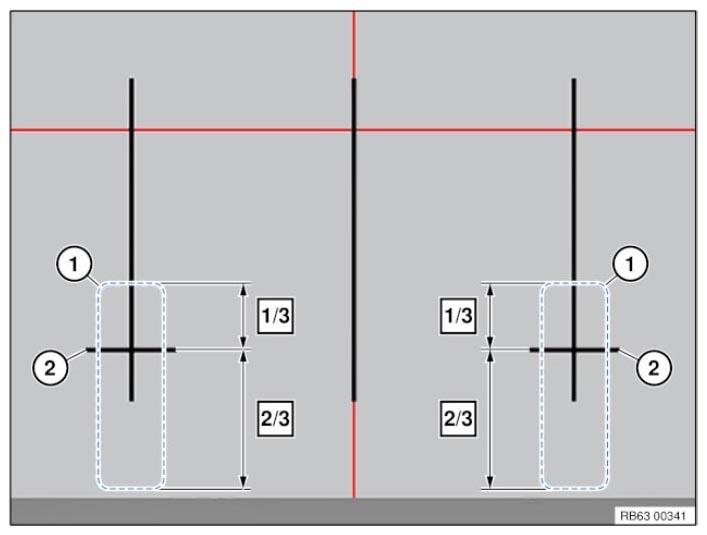

Check adjustment of Dynamic Light Spot headlight as follows:

Light pattern of the Dynamic Light Spot headlight must be within the area (1) on both sides.

Here 1/3 of the light pattern must be above and 2/3 below line (2).

NOTE: The adjustment is checked on the left and right sides separately.
Fig 7: Checking Adjustment Of Dynamic Light Spot Headlight
G08505793Courtesy of BMW OF NORTH AMERICA, INC.

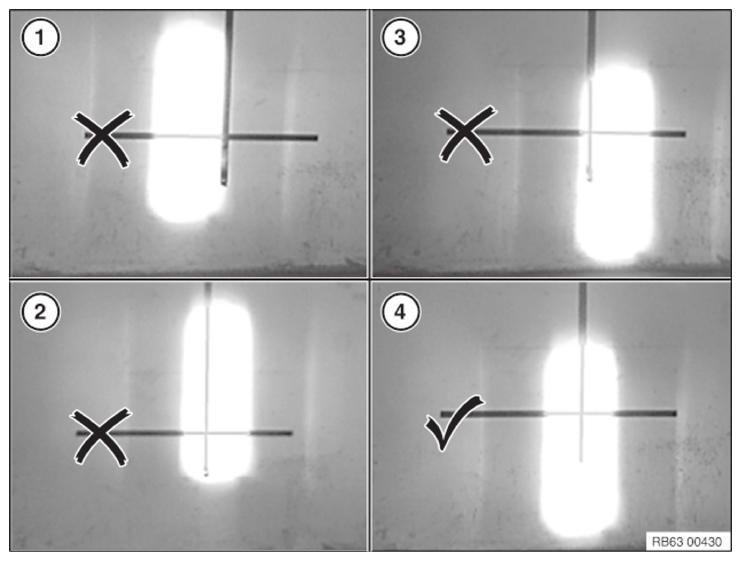

Examples of light patterns:

  1. Incorrect setting: horizontally too high, vertically too far left
  2. Incorrect setting: horizontally too high, vertically too far right
  3. Incorrect setting: horizontally correct, vertically too far right
  4. Correct setting
  5. Fig 8: Identifying Examples Of Light Patterns
    G09881268Courtesy of BMW OF NORTH AMERICA, INC.

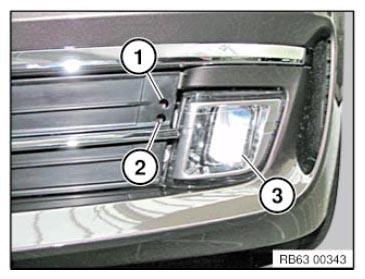

If necessary, adjust Dynamic Light Spot headlight (3) with screws (1, 2).

NOTE: Upper screw (1) is for height adjustment.
Lower screw (2) is for lateral adjustment.
Fig 9: Identifying Adjustment Screws Of Dynamic Light Spot Headlight
G08505795Courtesy of BMW OF NORTH AMERICA, INC.
