51 11 183 Removing and installing/replacing ornamental grille for bumper trim (side)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip retaining lugs (1) and remove ornamental grille (2) towards front.

Installation note:

Retaining lugs (1) must not be damaged.

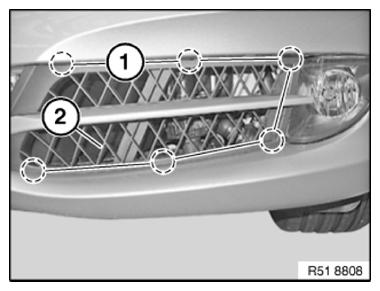

Fig 1: Identifying Retaining Lugs And Ornamental Grille
G09878958Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify trim (3) of ornamental grille (1).

Installation note:

Retaining lugs (2) must not be damaged.

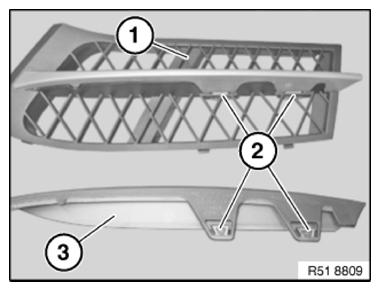

Fig 2: Identifying Trim, Ornamental Grille And Lugs
G09878959Courtesy of BMW OF NORTH AMERICA, INC.
