37 12 310 Removing and installing/replacing rear left or right shock absorber

Fig 1: Identifying Control Unit And Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work

• Remove REAR WHEEL
• Deactivate and drain AIR SPRING SYSTEM

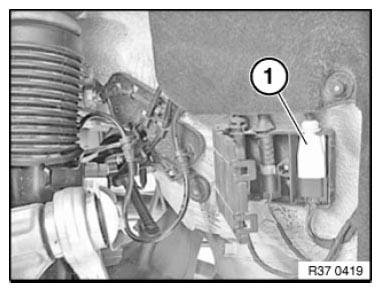

If applicable, disconnect the plug connections (1) and expose lines up to shock absorber.

Fig 2: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1).

Fig 3: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

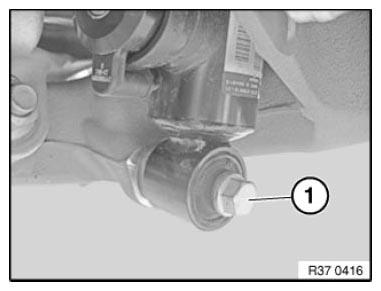

Release screw (1).

Installation note:

Before tightening screw/bolt connection, check that shock absorber pin is correctly positioned in swinging arm. Screw must not be used as a fitting aid to installing the shock absorber!

Replace bolt!

Tighten bolt in NORMAL POSITION .

Tightening torque, 33 52 4AZ

Fig 4: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

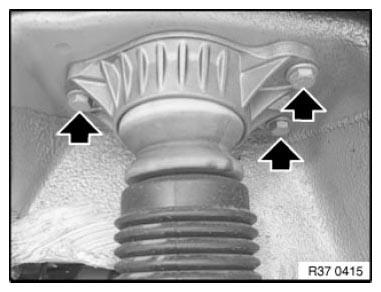

Release screws at support bearing.

Replace self-locking screws!

Tightening torque, 33 52 1AZ

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check O-ring and replace if necessary.

Fig 6: Identifying O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify SUPPORT BEARING .

Modify auxiliary absorber (1) and protective tube (2) incl. support cup.

Installation note:

Check auxiliary absorber (1) and protective tube (2) for damage, replace if necessary.

Fig 7: Identifying Auxiliary Absorber And Protective Tube

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note

• Activate and fill AIR SPRING SYSTEM
• Replacement only: Program/encode the shock absorber and check the software version
• If applicable, perform the VERTICAL ACCELERATION SENSOR ADJUSTMENT  in the event of a replacement only
