33 52 161 Replacing rear left or right thrust bearing for spring strut/shock absorber

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 0 040

Installation note:

All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

Remove rear SHOCK ABSORBER

Release nut with special tool 33 0 040 .

Tightening torque 33 52 2AZ .

Remove spring strut mounting (1).

Fig 1: Identifying Spring Strut Mounting And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove auxiliary damper (3) and protective tube (4) from mounting (2).

Check auxiliary damper (2) and protective tube for damage and replace if necessary.

Installation note:

Replace sealing ring (1).

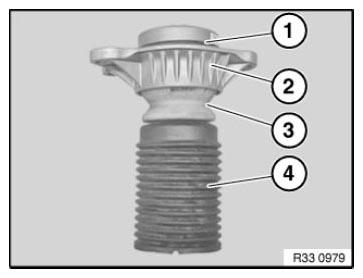

Fig 2: Identifying Auxiliary Damper, Protective Tube, Mounting, And Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
