37 13 130 Removing and installing/replacing underfloor pressure lines for oscillating motor (HA1/HA2)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off pipe connections with plugs. 32 1 270
Do not draw off hydraulic fluid (risk of contamination).
Close off pipe connections with plugs. 32 1 270
Recycling
Catch and dispose of hydraulic fluid in a suitable container.
Necessary preliminary work
- Remove RIGHT UNDERBODY PANELLING
- Partially remove front right WHEEL ARCH COVER (rear section)
- Remove rear wheel arch cover front section
IMPORTANT:
Pressure lines and connections on valve block must be fitted with suitable seal plugs immediately after removal! 32 1 270

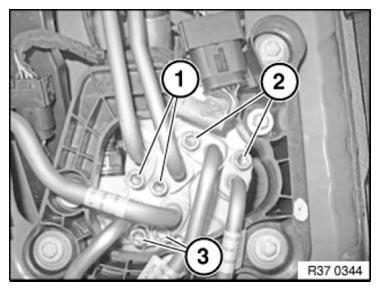

Release screws (1) for hydraulic lines on valve block.
Tightening torque 37 13 3AZ .
IMPORTANT:

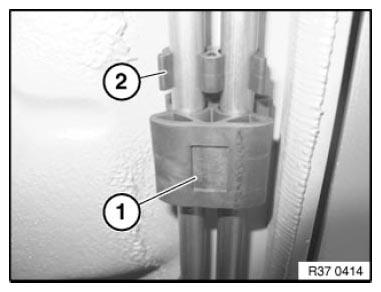

Note installation position of spacers (1) and (2).
Failure to do so may result in noises/rattling!
Failure to do so may result in noises/rattling!

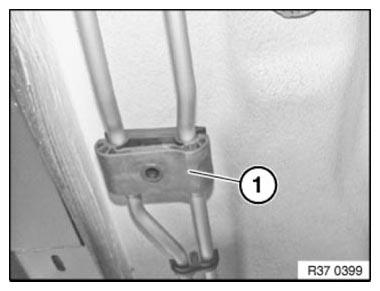

Open holder (1) and remove pressure lines.
Installation note:
If necessary, replace damaged holders.

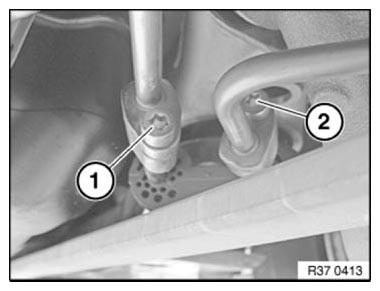

Release screws (1) and (2).
Tightening torque 37 13 12AZ .
Hydraulic lines must be provided with suitable seal plugs 32 1 270 immediately after removal!
IMPORTANT:
When assembling, make sure that in succession only the seal plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
After Installation note
- Fill and bleed HYDRAULIC SYSTEM
- Check line connections for leaks
- Carry out INITIAL DYNAMIC DRIVE OPERATION
