51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear section)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL

NOTE: For a better view surrounding components have been omitted.
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Release all screws (3).

Release expanding rivets (2) and (4).

Remove the cover of the wheel arch (1).

Installation note:

Renew expanding rivets (2).

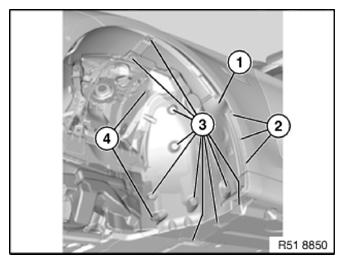

Fig 1: Identifying Wheel Arch Cover, Screws, Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure wheel arch cover (1) is correctly seated.
