52 13... Removing and installing/replacing support for outer cover on front seat
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SWITCH COMBINATION for seat adjustment.

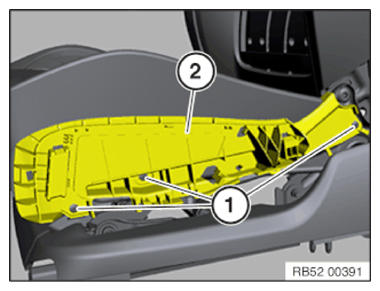

Drill out blind rivets (1).
IMPORTANT:
Use drill of correct diameter.
Make sure that support (2) and seat mechanism are not damaged.
Make sure that support (2) and seat mechanism are not damaged.
Remove support (2).
