52 14 402 Replacing seat cover for driver's seat (newer version): Notes

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove INNER COVER  on front seat.
• Remove SUPPORT FOR OUTER COVER .
• Remove REAR PANEL  on front seat backrest.

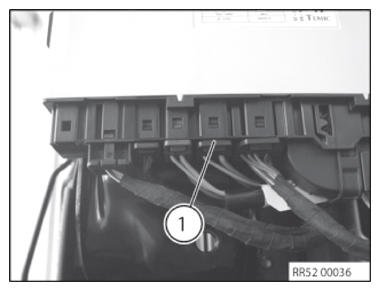

Unfasten plug connection (1) and disconnect.

Feed wiring harness out of seat mechanism.

Fig 1: Identifying Seat Mechanism Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out left and right clips (1).

Fig 2: Identifying Seat Mechanism Clips

Courtesy of BMW OF NORTH AMERICA, INC.

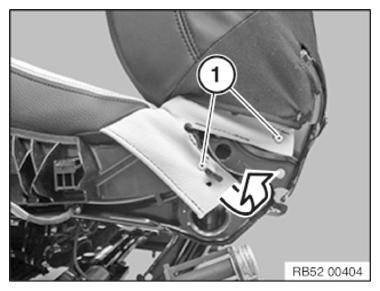

Drill out rivet heads (1) left and right.

Detach seat cover tab from seat frame.

Installation note:

Completely remove rivet residue.

Fig 3: Removing Seat Frame Rivet Heads

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from seat mechanism.

Fig 4: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from seat mechanism.

Fig 5: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

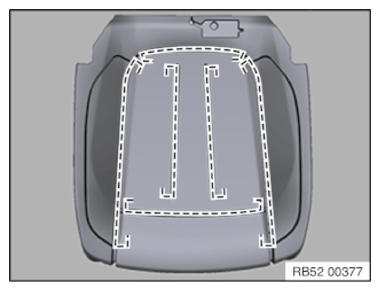

Release clamps in marked area.

Feed seat cover out of upholstery (1).

Fig 6: Identifying Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked area of trim wires.

Remove seat cover from upholstery.

Fig 7: Identifying Seat Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

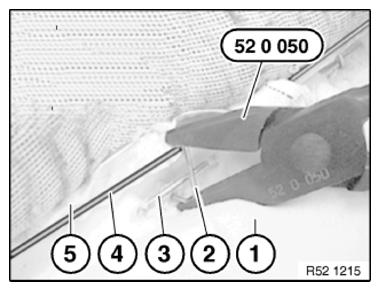

Installation note:

Bend new clamp (2) 52 0 050 closed with pliers.

1. Upholstery
2. Clamps
3. Welt in seat cover
4. Trim wire in upholstery
5. Seat cover
   Fig 8: Bending Seat Cover Clamp
