67 31 530 Removing and installing/replacing backrest adjustment motor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S or FRONT PASSENGER seat.
Remove rear panel on front seat backrest. See NORMAL SEAT or SPORT SEAT .
Remove COVERS ON FRONT SEAT

Detach seat fabric (1) in marked area.

Fig 1: Identifying Seat Fabric In Marked Area

G09879845

Courtesy of BMW OF NORTH AMERICA, INC.

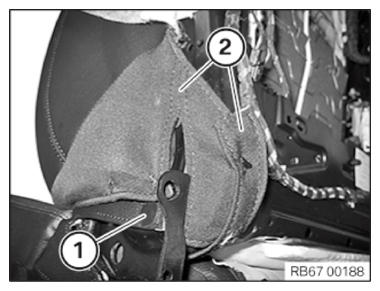

Release clip (1).

Detach backrest cover (2).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 2: Identifying Backrest Cover And Clip

G09879846

Courtesy of BMW OF NORTH AMERICA, INC.

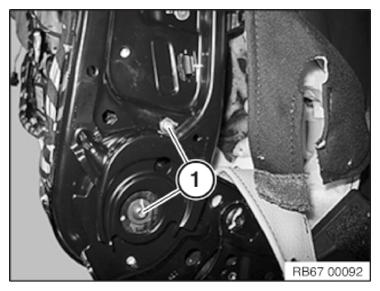

Release screws (1).

Fig 3: Identifying Backrest Cover Screws

G09879847

Courtesy of BMW OF NORTH AMERICA, INC.

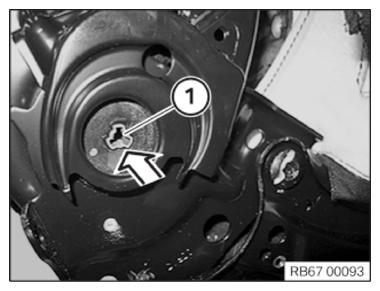

Push back drive linkage (1) until drive for backrest angle adjustment is free.

Installation note:

Make sure drive linkage (1) is correctly seated in backrest adjustment motor.

Fig 4: Pushing Back Drive Linkage

G09879848

Courtesy of BMW OF NORTH AMERICA, INC.

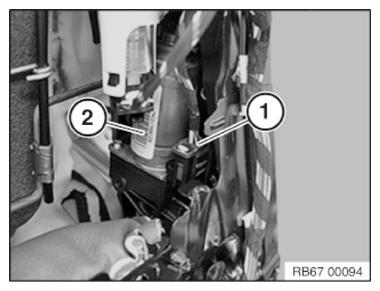

Unfasten plug connection (1) and disconnect.

Feed out drive (2) towards top.

Fig 5: Identifying Plug Connection

G09879849

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement

INITIALIZE backrest adjustment motor.
