52 16 198 Removing and installing/replacing rear panel on left or right front seat backrest (sport, electrical)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release expanding rivets (1).

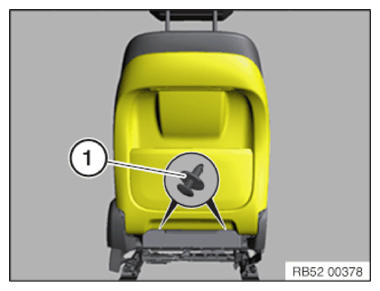

Fig 1: Identifying Right Front Seat Backrest Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear panel (1) forwards in area (A) and at the same time, slide it upwards.

Pull rear panel (1) out of the upper guides downwards and towards the rear.

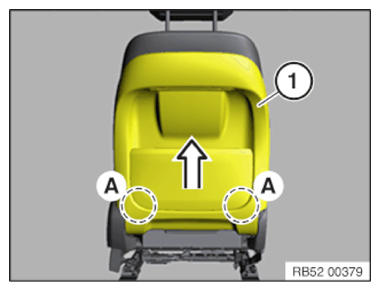

Fig 2: Pulling Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) and guides (2) of the rear panel (3) must not be damaged.

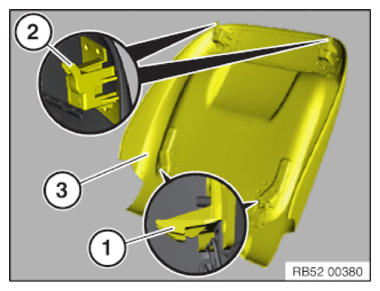

Fig 3: Identifying Seat Rear Panel, Guides And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
