51 24 137 Removing and installing/replacing Soft-Close System for lower rear lid

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR TAILGATE

Disconnect plug connection (1).

Release screws (2) and feed out drive (3).

Tightening torque 51 24 7AZ

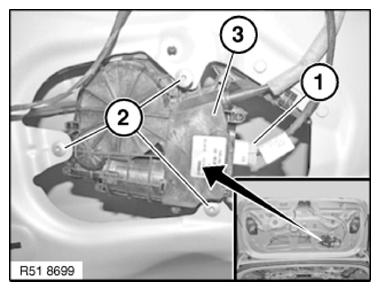

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Bowden cable out of REAR LID LOCK

Installation:

Make sure Bowden cable (1) is correctly positioned in rear lid.

Lay Bowden cable (1) without kinks.

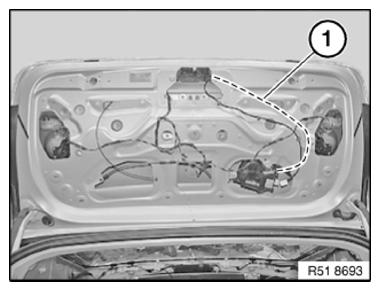

Fig 2: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
