51 24 020 Removing and installing/replacing rear lid lock for lower rear lid

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID

Release screws (1).

Tightening torque 51 24 1AZ .

Feed out rear lid lock (2).

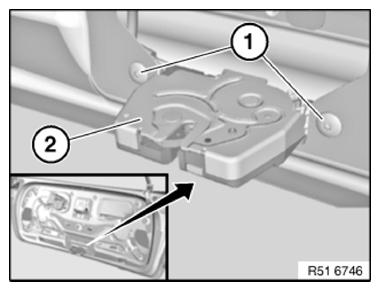

Fig 1: Identifying Screws And Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect Soft Close Bowden cable (1).

If necessary, disengage emergency release (3).

Remove rear lid lock (2).

Disconnect plug connection (4).

Installation:

Note different encoding of plug connections.

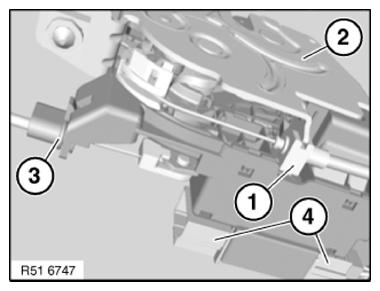

Fig 2: Identifying Rear Lid Lock, Plug Connection And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
