51 43... Removing and installing/replacing trim for rear roof pillar (D-pillar), left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove TRIM ON C-PILLAR AT BOTTOM
Remove CAPPING PANEL

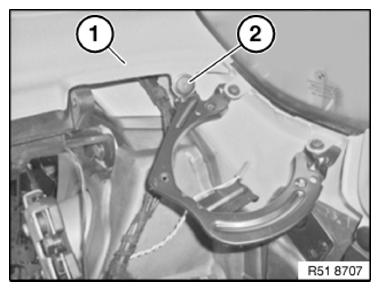

Detach expanding rivet (2) from trim panel (1).

Fig 1: Detaching Expanding Rivet From Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

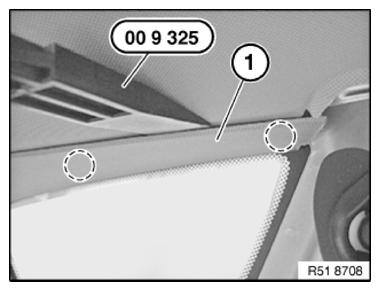

Unclip and remove trim panel (1) from roof frame at marked locations using special tool 00 9 325 .

Fig 2: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (2) must not be damaged.

Replacement

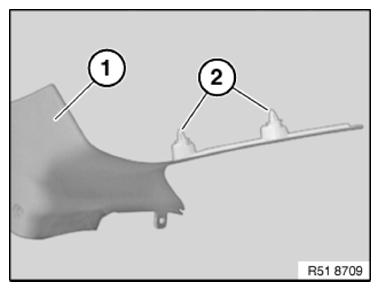

Modify clip (2) of trim panel (1).

Fig 3: Identifying Clips Of Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
