51 47... Removing and installing/replacing left or right shoulder trim panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove storage shelf
Remove LUGGAGE COMPARTMENT LIGHT

Luggage compartment light must be completely removed to be able to remove shoulder trim panel.

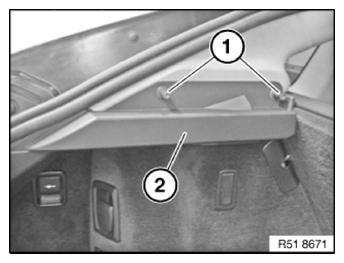

Remove screws (1) from shoulder trim panel (2).

Fig 1: Removing Screws From Shoulder Trim Panel

G09879623

Courtesy of BMW OF NORTH AMERICA, INC.

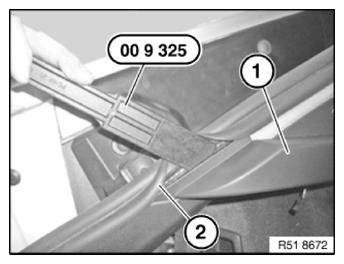

Unclip shoulder trim panel (1) with special tool 00 9 325 as shown and remove shoulder trim panel (1).

Installation note:

Do not clamp rear lid seal (2) in region of shoulder trim panel (1).

Fig 2: Unclipping Shoulder Trim Panel

G09879624

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

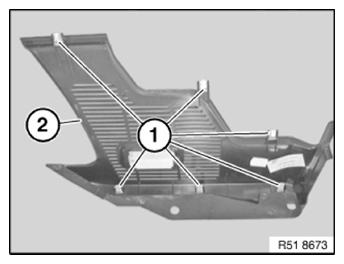

Replace defective clamps (1) on shoulder trim panel (2).

Fig 3: Identifying Defective Clamps On Shoulder Trim Panel

G09879625

Courtesy of BMW OF NORTH AMERICA, INC.
