51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove COVER ON C-PILLAR AT BOTTOM
Remove REAR SEAT BELT (end fitting)

Release expanding rivets (2) from trim panel (1).

Unhook trim panel (1) downward and set aside.

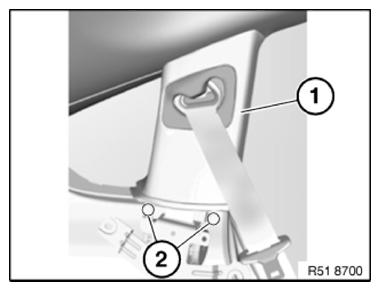

Fig 1: Identifying Expanding Rivets From Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Hooks (2) on trim panel (1) must not be damaged.

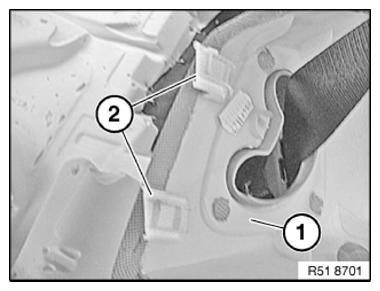

Fig 2: Identifying Hooks On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
