51 47... Removing and installing/replacing cover of cross member

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Fold backrests forwards.
Fold up and lock roll-up cover

NOTE: For a better view surrounding components have been omitted.

Unclip cover of cross member (1) at marked locations and remove cover.

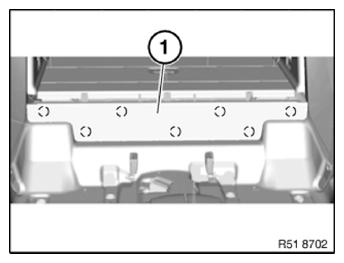

Fig 1: Identifying Cover Of Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips.

Clip (1) = yellow

Clip (2) = White

Replacement

Modify clips (1) and (2).

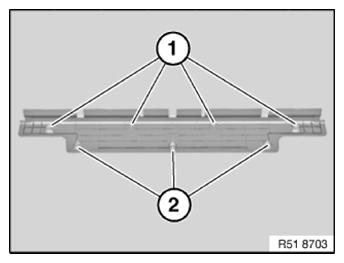

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
