65 11 075 Removing and installing/replacing DVD changer

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD

Open glove box.

Release screws (1).

Remove bracket for DVD changer (2) downward.

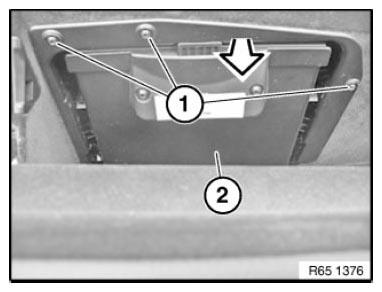

Fig 1: Removing Screws Of Glove Box

G08485225

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure bracket of DVD changer (1) is correctly seated in glove compartment (3).

Guide lugs (1) must fit correctly in the corresponding recesses.

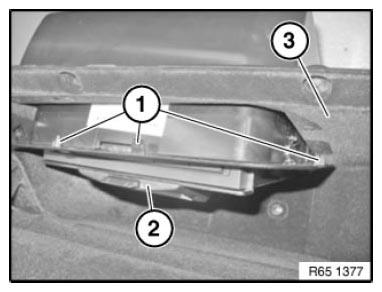

Fig 2: Identifying Bracket Of DVD Changer And Glove Compartment

G08485226

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove bracket (2) with DVD changer.

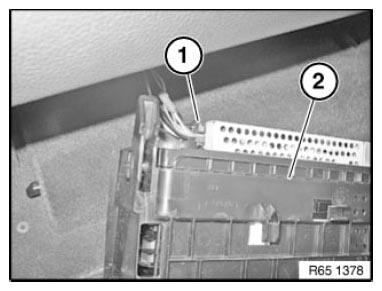

Fig 3: Identifying Plug Connection And Bracket

G08485227

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Open fold-down compartment (1).

Release left and right screws (2).

Pull DVD changer (4) in direction of arrow out of bracket (3).

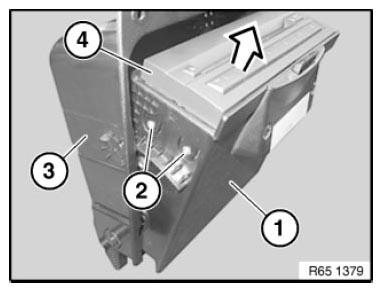

Fig 4: Pulling Out DVD Changer

G08485228

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
