51 45 380 Removing and installing decorative strip on right instrument panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Carefully unclip sides of decorative strip (1) with special tool 00 9 325 .

Then carefully unclip middle.

Lift off decorative strip (1) slightly and disconnect underlying plug connection.

Remove decorative strip (1).

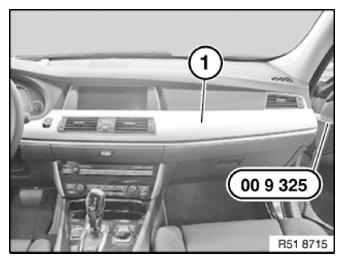

Fig 1: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1) on back of decorative strip (2).

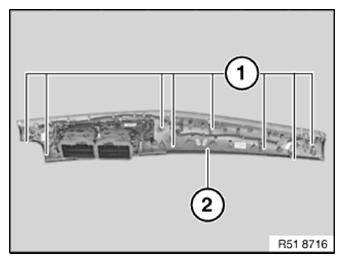

Fig 2: Identifying Decorative Strip And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
