51 16 202 Removing and installing/replacing front cup holder

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove CENTER CONSOLE TRIM

Remove foam strip (1).

Installation:

If necessary, replace foam strip (1).

Release screws (2) on left and right from center console cover (3).

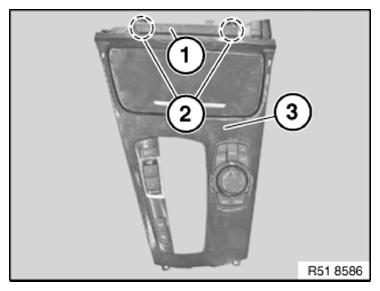

Fig 1: Identifying Foam Strip, Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from cup holder and remove cup holder.

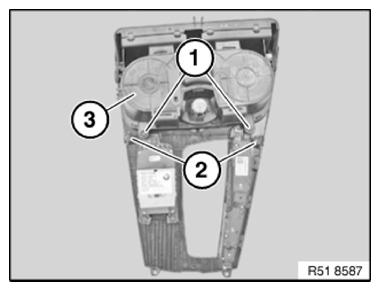

Fig 2: Identifying Screws From Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

MODIFY DECORATIVE TRIM of cupholder.
