51 16 160 Removing and installing center console cover

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Open cup holder sealing cap and pull out protective carpet (1) at tab (see arrow in illustration).

If necessary, first remove tray insert or ashtray.

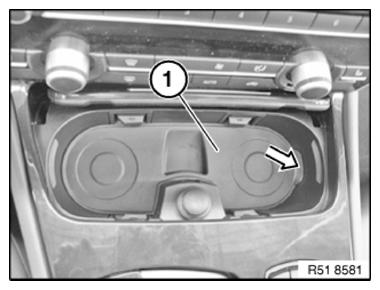

Fig 1: Pulling Out Protective Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Open both center console armrests.

Carefully lift off cover latch (1) by hand.

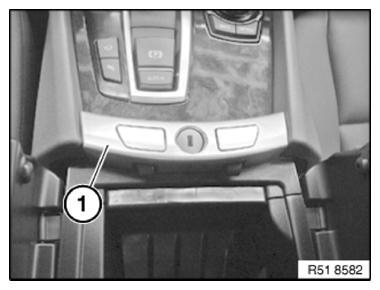

Fig 2: Identifying Cover Latch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Lightly screw in screws part way.

Tightening torque 51 16 9AZ .

Use adhesive tape to protect front decorative trim from damage.

Carefully lever out center console trim (2) at marked locations on left and right.

Continue to lift up center console trim (2) at rear at an angle and disconnect remaining plug connections.

Lift and push out 12-V power socket insert (3).

Carefully lift out center console trim (2).

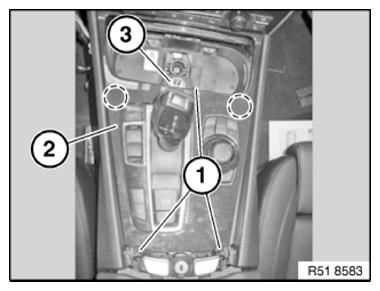

Fig 3: Identifying Screws And Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace defective retainers (1).

Make sure center console trim is seated correctly.

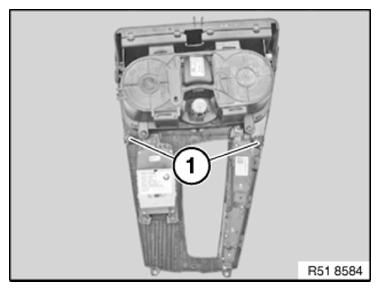

Fig 4: Identifying Defective Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
