51 16... Removing and installing/replacing cup holder decorative trim

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Removal procedure:

Protect decorative trim (1) against scratches.

Open protective cap (2) of cup holder halfway.

Unclip decorative trim (1) on handle strip (3) away from protective cap (2) and remove.

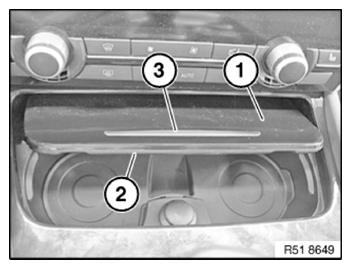

Fig 1: Identifying Decorative Trim, Protective Cap And On Handle Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation procedure:

NOTE: Shown removed here for purposes of clarity.

Close protective cap (1).

Position decorative trim (2) slightly offset towards rear and slide forward to clip on.

Installation:

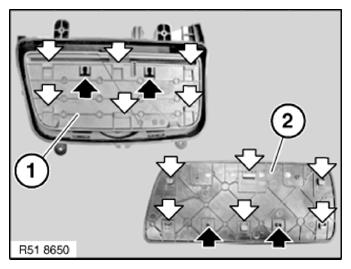

Mounting hooks, clip tabs and pins (see arrow in illustration) on protective cap (1) and decorative trim (2) must not be damaged.

Fig 2: Positioning Decorative Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Protect new decorative trim against scratches.
