51 45 382 Replace decorative strip on instrument panel at right
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT
- Remove START/STOP SWITCH
- Remove CENTER FRESH-AIR GRILLE

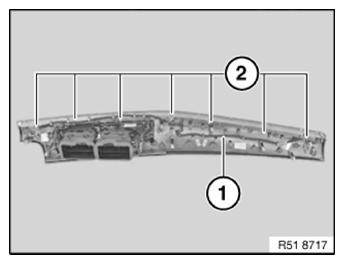

Disconnect remaining plug connections at wiring harness (1).
Modify wiring harness (1)
Release retaining tabs (2) from decorative strip.
Modify decorative strip, including fibre optic conductor.
Installation:
Check proper fit of decorative strip and center if necessary.
