64 22 165 Removing and installing/replacing center fresh air grille

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

F01, F02, F03, F06, F12, F13:

Remove decorative strip on dashboard in middle

F07, F10, F11, F18:

Remove DECORATIVE STRIP ON DASHBOARD ON RIGHT

IMPORTANT: Proceed with care so as to avoid damaging the fresh air grille.

NOTE: Picture for example purposes only!

Replacement

Release screws at marked points at top and bottom.

Remove center fresh air grille (1).

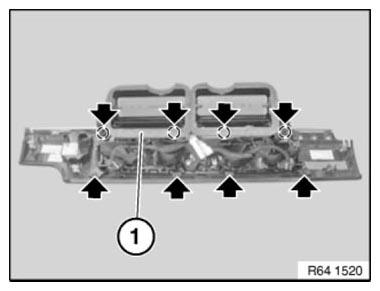

Fig 1: Locating Center Fresh Air Grille Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify SWITCH FOR HAZARD WARNING SYSTEM/CENTRAL LOCKING
