51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 240

WARNING: Risk of injury!
Carry out work on the power window unit only when the power window motor is de-energized.

Necessary preliminary tasks:

Remove SOUND INSULATION IN FRONT DOOR
Remove outer window cavity cover strip

Loosen hook screws (1) with special tool 51 3 240 on ring gear.

Tightening torque 51 33 1AZ .

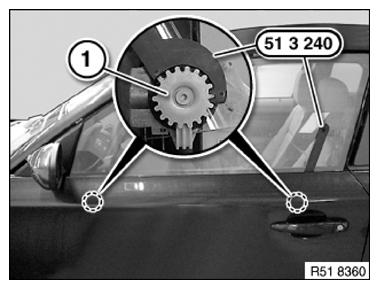

Fig 1: Tightening Multipoint Screws

G09879396

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Slacken hook screw on ring gear (1) until it can be easily twisted out at the inner star (2).

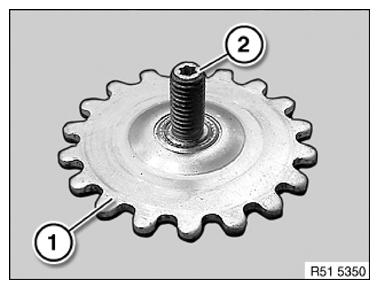

Fig 2: Identifying Slacken Hook Screw On Ring Gear

G09879397

Courtesy of BMW OF NORTH AMERICA, INC.

Open door window glass (1) until hook screws (2) are accessible.

IMPORTANT: Risk of injury!
Disconnect plug connection (3) at power window motor (risk of trapping).

Release hook screws (2) (turn in clockwise direction).

Fig 3: Identifying Door Window Glass, Hook Screws And Plug Connection

G09879398

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Door window glass (3) remove for purposes of clarity.
Raise holder (1) at lug (2) and remove door window glass (3) in upward direction.

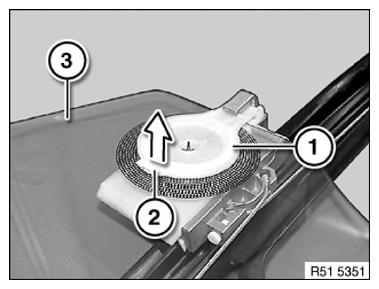

Fig 4: Removing Door Window Glass

G09879399

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure door window glass (1) is correctly seated on holder (2) and window guide (3).

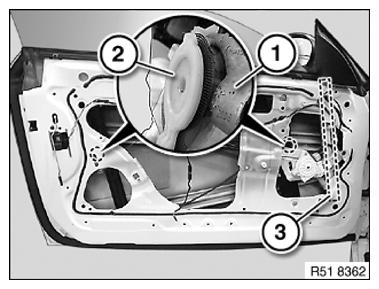

Fig 5: Identifying Door Window Glass, Window Guide And Holder

G09879400

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust DOOR WINDOW GLASS CAVITY DIMENSIONS .

Adjust DOOR WINDOW GLASS .

Carry out function check on power window unit and anti-trapping protection.

If necessary, NORMALIZE power window unit.
