51 33 000 Removing and installing/replacing power window regulator in left or right front door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks:

Remove FRONT DOOR WINDOW GLASS

Release nut (1) with special tool 51 0 400 .

Tightening torque 51 33 6AZ .

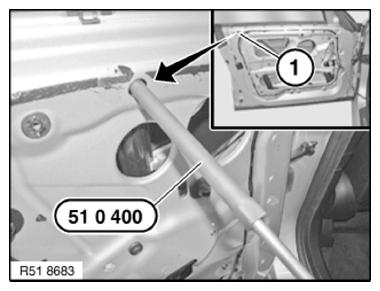

Fig 1: Releasing Nut

G09879403

Courtesy of BMW OF NORTH AMERICA, INC.

Remove blanking plug.

Loosen nut (3) with special tool 51 3 300 .

Remove rear section of power window unit.

Tightening torque 51 33 4AZ .

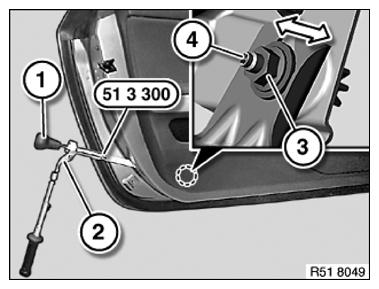

Fig 2: Loosening Nut

G09879404

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clip power window cable guide (2) into clip (1).

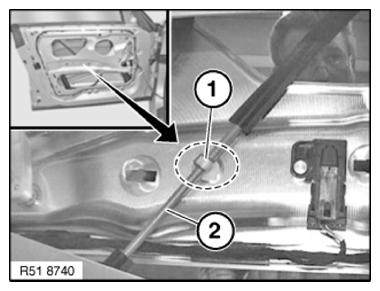

Fig 3: Identifying Power Window Cable Guide And Clip

G09879405

Courtesy of BMW OF NORTH AMERICA, INC.

Peel back film (1) and release nuts below it.

Unscrew nuts (2).

Tightening torque 51 33 3AZ .

Unscrew nut (3).

Tightening torque 51 33 2AZ .

Completely remove power window unit (4).

Installation note:

Replace faulty film (1).

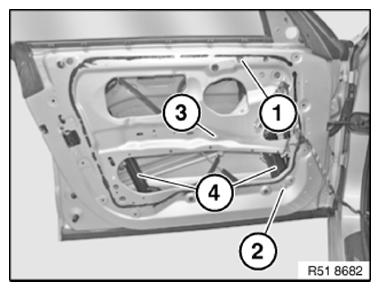

Fig 4: Identifying Back Film, Nuts And Power Window Unit

G09879406

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks

Observe NOTES ON INITIALIZING POWER WINDOW REGULATOR

Replacement

Swap over FLAT MOTOR for power window regulator.
