67 62 020 Removing and installing/replacing flat motor for rear left or right power window regulator

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR POWER WINDOW REGULATOR

Release screws (1) and detach flat motor (2) from power window regulator.

Tightening torque 67 62 1AZ .

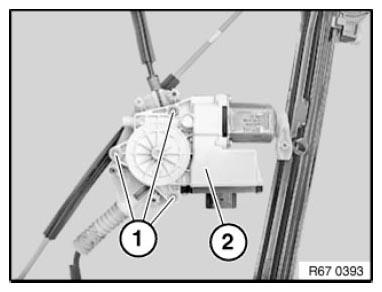

Fig 1: Identifying Power Window Regulator, Flat Motor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For stress-free installation of the flat motor, fit journal (1) in guide (2)!

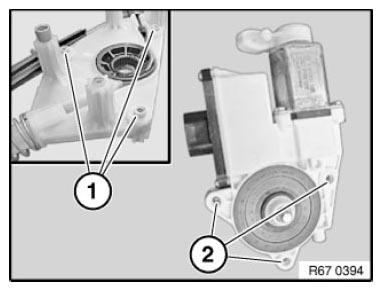

Fig 2: Identifying Flat Motor Guide

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

An initialization must be carried out in order to activate anti-trap mechanism.

Read and comply with NOTES on initialization of power window regulator.
