51 11 773 Replacing front lower left or right deformation element

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SUPPORT FOR BUMPER PANEL AT FRONT BOTTOM

Partially detach FRONT ENGINE UNDERCOVER and remove screw (1) from bottom cover.

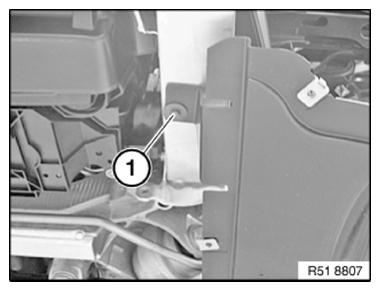

Fig 1: Identifying Screw From Bottom Cover

G09878978

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

G09878979

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on vertical connection (2).

Tightening torque 51 11 2AZ .

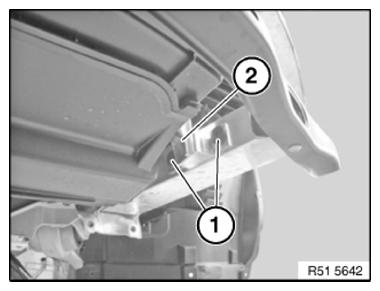

Fig 3: Identifying Screws And Vertical Connection

G09878980

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on front axle support adapter plate (2).

Tightening torque 51 11 6AZ .

Remove deformation element (3).

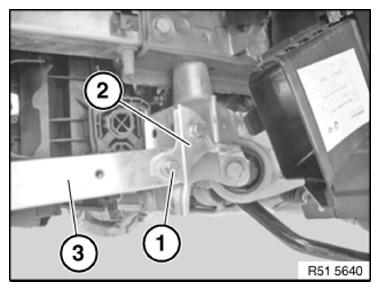

Fig 4: Identifying Element, Bolt On Front Axle Support Adapter Plate
