51 11 060 Removing and installing/replacing support for front bottom bumper panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER PANEL

Version with ACC:

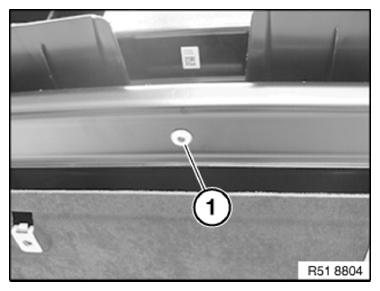

Drill out blind rivet (1).

Fig 1: Identifying Blind Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

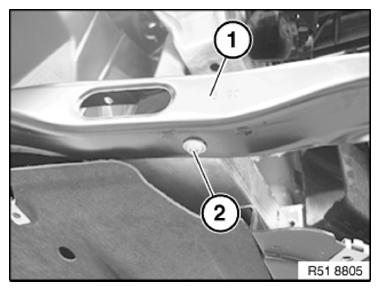

Undo bolts (2) on left and right on cross-member (1).

Tightening torque 51 11 5AZ .

Remove carrier (1).

Fig 2: Identifying Carrier And Undo Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
