51 47... Removing and installing/replacing left or right trim panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT LID ON LEFT or
POWER DISTRIBUTION BOX COVER ON RIGHT
Remove SHOULDER PANEL

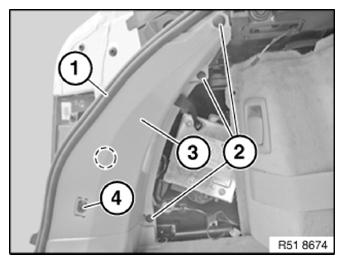

Pull off rear lid seal (1) in area of trim panel (3).

NOTE: For purposes of clarify, screw cover has already been removed in graphic.

Release screw (4) under cover.

Release expanding rivets (2).

Unclip trim panel (3) in marked area and remove.

Fig 1: Pulling Off Rear Lid Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty clip (white).

Replacement

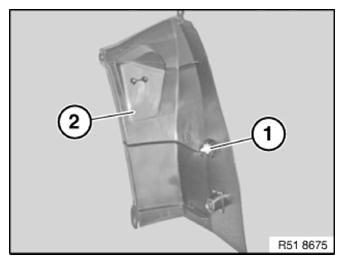

Modify clip (1) of trim panel (2).

Fig 2: Identifying Clip Of Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
